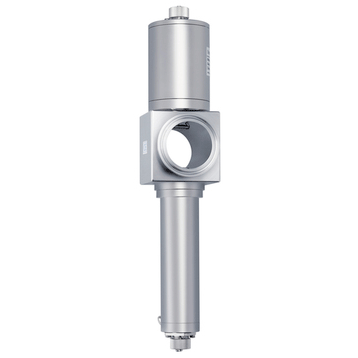

OUSTF10 forward scatter flowcell
Low turbidity sensor
Application
The OUSTF10 scattered light turbidity sensor is used with OCM44P transmitter for measurement of non-dissolved solids, emulsions, and immiscible fluids in process liquids. The sensor operates in the VIS/NIR region of the electromagnetic spectrum. It is suitable for a variety of industries.
Turbidity measurement for:
• Quality control / Purity monitoring
• Condensate control
• Turbidity in Breweries
• Filter control
• Turbidity in potable water
• Heat exchanger leak detection
• Turbidity in brine
Your benefits
• Accurately measures low level particulates up to the equivalent of 0 to 200 FTU formazine or 0 to 200 ppm Diatomaceous Earth, using scattered light detection at 11° angle from excitation beam
• FM and ATEX approved explosion proof lamps for hazardous area applications
• Low voltage incandescent lamp provides long dependable life
• The OUSTF10 can be fitted with long pass NIR filter to minimize color related measurement errors
The OUA260 flow assembly used with the sensor offers the following benefits:
• Broad variety of wetted materials provides resistance against any process medium
• Flexible process adaptation with various process connections
• Hygienic versions with certified materials and SIP/CIP-resistance
• Air purge ports available for preventing condensate formation on the optical windows
• Pyrex windows deliver accurate and reproducible performance under industrial conditions, Quartz or Sapphireoptional
|
|
